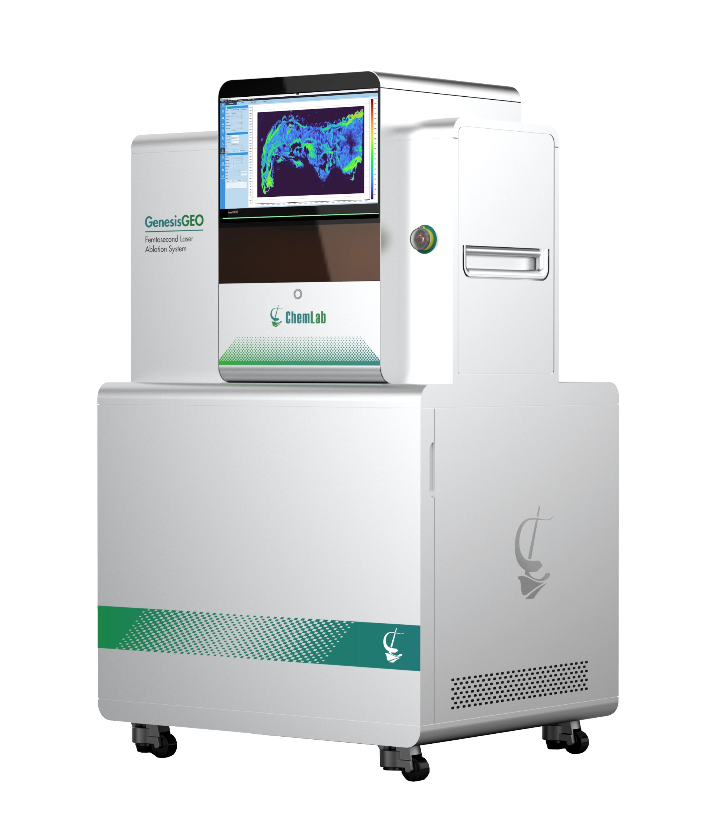

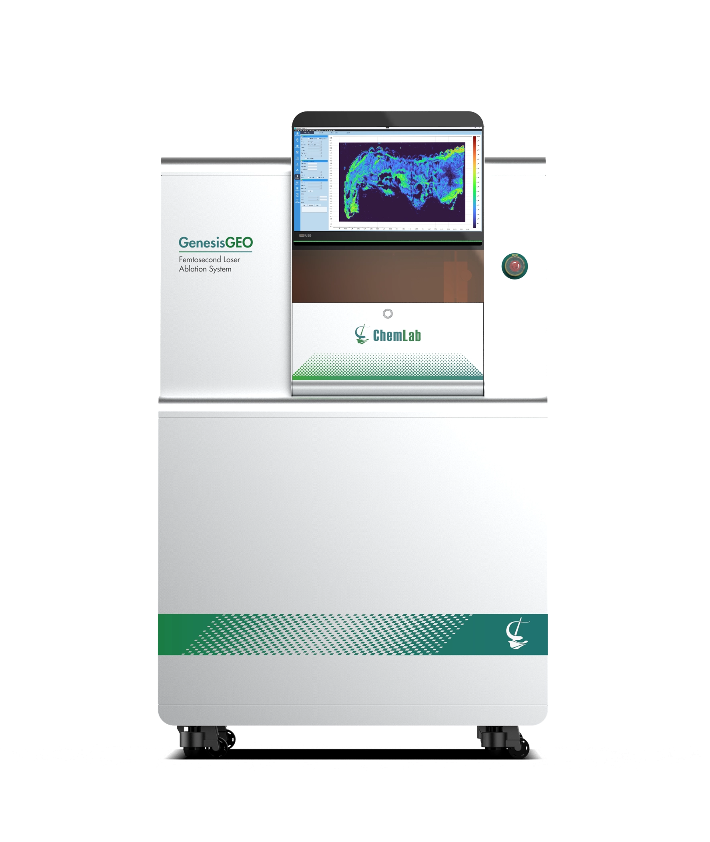

The GenesisGEO Matrix-Array Femtosecond Laser Ablation System is independently developed by Shanghai Chemlab Instrument Co., Ltd., boasting proprietary core technologies and a fully self-developed design architecture, ensuring technological independence. The system provides a continuously adjustable spot size ranging from 1 μm to 500 μm, supporting both circular and rectangular beam profiles. Featuring high energy density and minimal thermal effects, it is ideally suited for research applications across geochemistry, environmental science, life science, advanced materials, and semiconductor. GenesisGEO significantly expands the capabilities of femtosecond laser ablation technology, empowering researchers worldwide with a far more efficient and precise analytical tool.
技术特点
What is Femtosecond Laser Ablation?
Femtosecond Laser Ablation (fs-LA) is an in-situ micro-sampling technique based on ultrashort femtosecond laser pulses. Unlike nanosecond laser ablation, which relies on a heating–melting–vaporization process, fs-LA removes material through a “Coulomb explosion” mechanism, enabling a near-athermal (“cold”) ablation process. In essence, fs-LA is a process that outruns thermal diffusion, using ultrafast laser pulses to minimize heat transfer, thus serving as an ideal sampling technique for high-precision micro-analysis.
When coupled with Inductively Coupled Plasma Mass Spectrometry (ICP-MS), the technique virtually eliminates thermal effects and generates fine, homogeneous aerosol particles. This optimizes ionization and transport efficiency within the ICP-MS system, enhances signal intensity and stability, enabling high-sensitivity, high-precision and high-spatial-resolution analysis for elements and isotopes with minimal matrix effect.
GenesisGEO – Redefining Laser Ablation Technology!
Key features:
1. Flat-bottom Crater
Ideal for accurate quantification and high-precision isotopic analysis
2. High-energy Output
Energy density on sample surface ≥ 50 J/cm²
Stable energy delivery without attenuation concerns
3. Ultra-wide Spot Size Range
Spot size: 1 – 500 μm (expandable)
Continuously adjustable circular & rectangular spots
Supports advanced method development
4. Low Operating Cost (Maintenance-free)
Simplified optical design — plug-and-play operation
No ArF gas required
No N₂ optical protection required
Saves up to CNY 1,000,000 over a decade operation period
5. Multi-technology Integration
Upgradeable with Raman spectroscopy module & LIBS module
Optional cryogenic ablation accessory
Supports customized functional configurations for multi-purpose operation

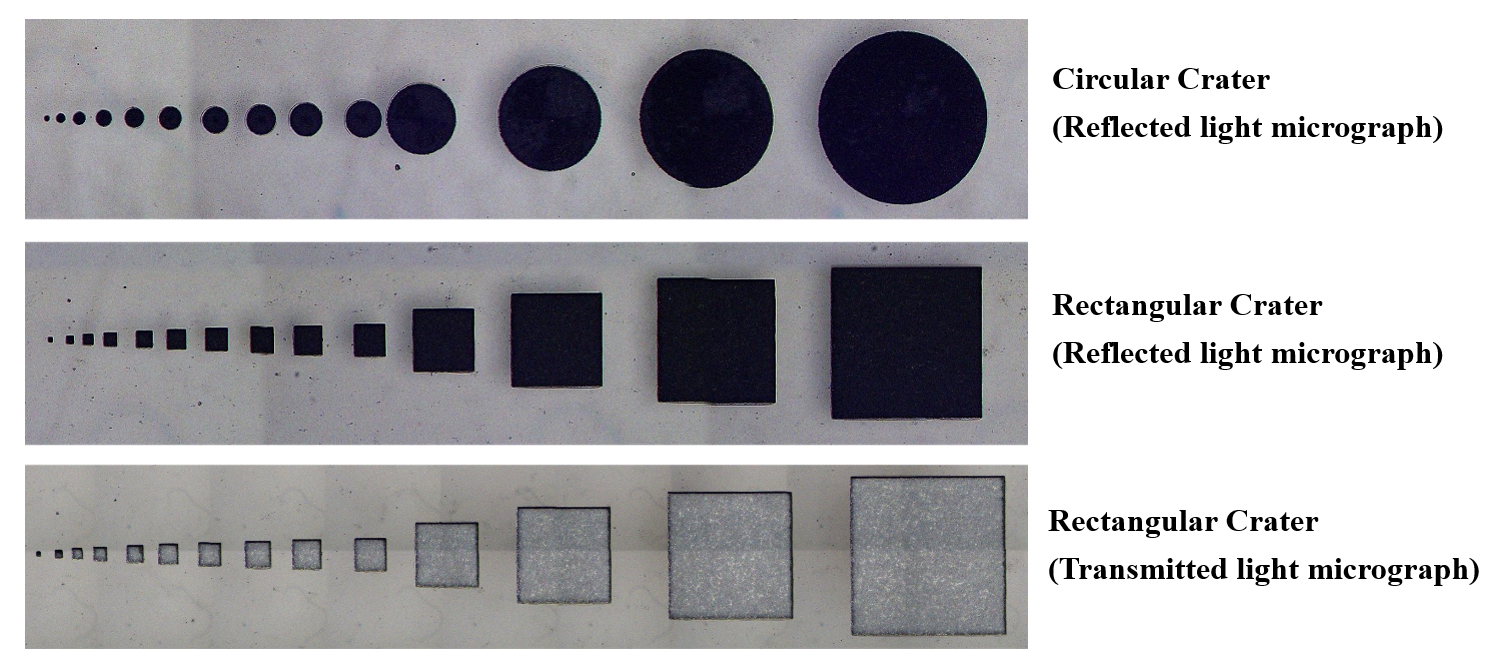

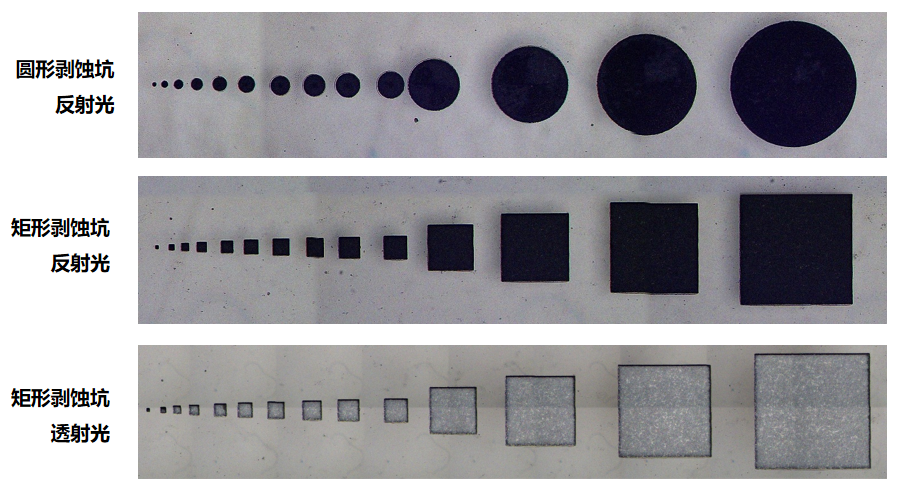

Flat-bottom ablation craters on glass samples
Sizes (from left to right): 10μm, 20μm, 30μm, 40μm, 50μm, 60μm, 70μm, 80μm, 90μm, 100μm, 200μm, 300μm, 400μm, 500μm
